| MOQ: | 1kg |
| Price: | US $60/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20000 Tons/Year |
Nitrogen trifluoride (NF3) is a chemical compound composed of one nitrogen atom bonded to three fluorine atoms. It is a colorless, nonflammable gas with a pungent odor. NF3 is primarily used in the electronics industry for cleaning equipment and removing contaminants during the manufacturing process.
Here are some key points about nitrogen trifluoride gas:
Applications: NF3 is widely employed as a cleaning agent for chemical vapor deposition (CVD) chambers, which are used in the production of semiconductors, flat panel displays, and photovoltaic cells. It effectively removes residues and impurities from the surfaces of these devices.
Chemical Properties: Nitrogen trifluoride is a stable compound with a boiling point of -128.8°C (-199.8°F) and a melting point of -206.6°C (-339.9°F). It is soluble in water and various organic solvents. The molecule has a trigonal pyramidal shape, with the nitrogen atom at the center and the three fluorine atoms arranged around it.
Safety Considerations: NF3 is relatively safe when handled properly, but it can be hazardous if mishandled or exposed to high concentrations. It is an asphyxiant, displacing oxygen in the air. Prolonged exposure to high levels of NF3 can cause respiratory irritation and other health issues. Adequate ventilation and proper safety measures should be in place when working with this gas.
Environmental Impact: Nitrogen trifluoride is a potent greenhouse gas with a high global warming potential (GWP). It has an atmospheric lifetime of around 550 years, contributing to its long-term impact on climate change. The increasing use of NF3 in the electronics industry has raised concerns about its environmental footprint and the need for proper management and reduction strategies.
Handling and Storage: NF3 is typically stored in high-pressure cylinders or tanks. Due to its potential reactivity, it should be kept away from incompatible materials, such as reducing agents or strong bases. Proper storage and handling procedures, as well as adherence to safety regulations, are essential to minimize risks.
Basic Info.
| Molecular Weight | 147.05 | Density | 2.96Kg/m³ |
| Melting Point | -206.79ºC | Boiling Point | -129.0ºC |
| Appearance | Colorless,Odorless | Un No. | 2451 |
| DOT Class | 2.2&5.1 | Valve | Diss640 |
| Cylinder Standard | GB/ISO/DOT | Cylinder Pressure | 15Mpa/20Mpa |
| Transport Package | 47L/440L | Specification | 99.99%,99.996% |
| Trademark | CMC | Origin | China |
| HS Code | 28129011 | Production Capacity | 5000tons/Year |
Specifications:
| Specifications | Company Standard |
| NF3 | ≥ 99.996% |
| CF4 | ≤ 20 ppm |
| N2 | ≤ 5 ppm |
| O2+AR | ≤ 3 ppm |
| CO | ≤ 1 ppm |
| CO2 | ≤ 0.5 ppm |
| N2O | ≤ 1 ppm |
| SF6 | ≤ 2 ppm |
| Moisture | ≤ 1 ppm |
| Express as HF | ≤ 1 ppm |

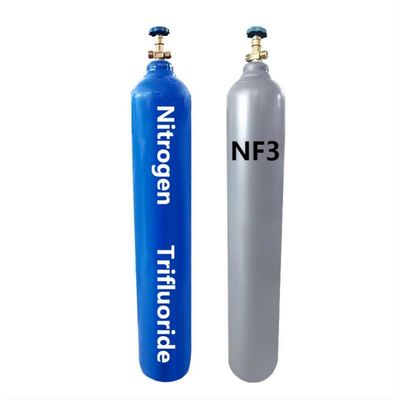

Detailed Photo
|
|
