| MOQ: | 1kg |
| Price: | US $60/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20000 Tons/Year |
NF3 gas refers to nitrogen trifluoride in its gaseous state. Nitrogen trifluoride (NF3) is a colorless, odorless gas at room temperature. Here are some key properties and considerations regarding NF3 gas:
Physical State: NF3 exists as a gas at standard temperature and pressure (STP). It has a boiling point of -129 degrees Celsius (-200 degrees Fahrenheit) and a melting point of -206 degrees Celsius (-339 degrees Fahrenheit).
Odor and Appearance: Nitrogen trifluoride is odorless and does not have a distinct color. It is not readily detectable by human senses.
Stability and Reactivity: NF3 is a stable compound and does not readily react with most common materials at room temperature. However, it can undergo reactions under certain conditions or in the presence of specific catalysts.
Industrial Applications: NF3 gas has various industrial applications, including:
Electronics Manufacturing: It is commonly used as a cleaning agent in the electronics industry for removing residues from silicon wafers, chambers, and other electronic components during the manufacturing process.
Plasma Etching: NF3 is used as a plasma etchant in the semiconductor industry to selectively remove materials from the surface of silicon wafers and other substrates.
Solar Panel Production: It is employed in the production of thin-film photovoltaic cells used in solar panels.
Fluorinating Agent: NF3 can act as a fluorinating agent in certain chemical reactions for introducing fluorine atoms into organic molecules.
Safety Considerations: While NF3 is not considered highly toxic, it is important to handle it with care and follow safety guidelines. Like any compressed gas, it should be stored, handled, and transported in appropriate containers designed for such gases. Adequate ventilation should be provided when working with NF3 to prevent the buildup of potentially harmful concentrations. It is also important to follow safety procedures to prevent accidental releases or exposure.
Environmental Impact: Nitrogen trifluoride is a potent greenhouse gas with a high global warming potential. It has a long atmospheric lifetime, contributing to its potential impact on climate change. Efforts are being made to monitor and reduce emissions of NF3 to mitigate its environmental impact.
When working with NF3 gas, it is crucial to follow safety guidelines and handle it responsibly to ensure the well-being of individuals and minimize environmental impact.
Basic Info.
| Molecular Weight | 147.05 | Density | 2.96Kg/m³ |
| Melting Point | -206.79ºC | Boiling Point | -129.0ºC |
| Appearance | Colorless,Odorless | Un No. | 2451 |
| DOT Class | 2.2&5.1 | Valve | Diss640 |
| Cylinder Standard | GB/ISO/DOT | Cylinder Pressure | 15Mpa/20Mpa |
| Transport Package | 47L/440L | Specification | 99.99%,99.996% |
| Trademark | CMC | Origin | China |
| HS Code | 28129011 | Production Capacity | 5000tons/Year |
Specification:
Nitrogen trifluoride at room temperature is a colorless, odorless, stable gas, is a strong oxidant.
| Specifications | Company Standard |
| NF3 | ≥ 99.996% |
| CF4 | ≤ 20 ppm |
| N2 | ≤ 5 ppm |
| O2+AR | ≤ 3 ppm |
| CO | ≤ 1 ppm |
| CO2 | ≤ 0.5 ppm |
| N2O | ≤ 1 ppm |
| SF6 | ≤ 2 ppm |
| Moisture | ≤ 1 ppm |
| Express as HF | ≤ 1 ppm |

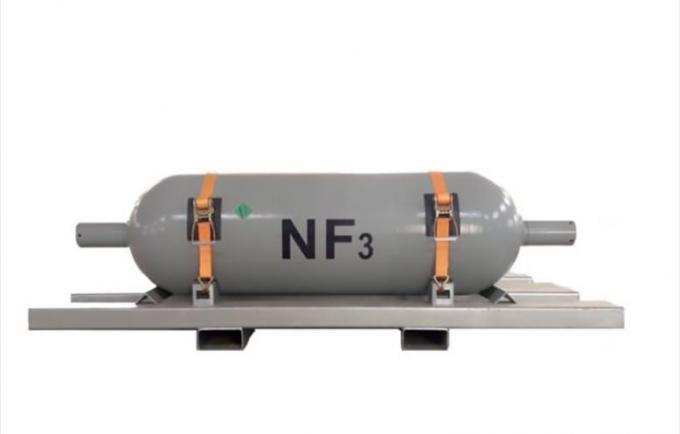

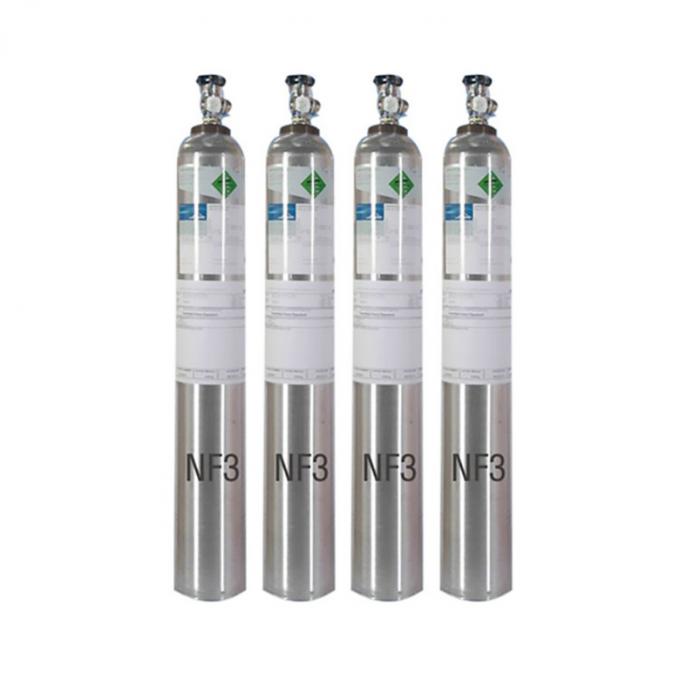

Detailed Photos
|
|
