| MOQ: | 1kg |
| Price: | US $60/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20000 Tons/Year |
Nitrogen trifluoride (NF3) is a chemical compound composed of one nitrogen atom and three fluorine atoms. It is a colorless, odorless gas with a molecular formula of NF3. Here are some key points about nitrogen trifluoride:
Production: NF3 can be produced by the reaction of ammonia (NH3) with fluorine gas (F2). The reaction typically takes place in the presence of a catalyst, such as alumina or silica, at elevated temperatures.
Properties: NF3 is a stable gas at room temperature and pressure. It has a boiling point of -129 °C (-204 °F) and a melting point of -206 °C (-339 °F). The gas is nonflammable, but it can support combustion. NF3 is soluble in water and some organic solvents.
Uses: The primary use of nitrogen trifluoride is as a cleaning agent for the removal of thin film deposition in the semiconductor industry. It is commonly used to clean equipment such as chemical vapor deposition (CVD) chambers, plasma etching systems, and sputtering equipment. NF3 is preferred for this application due to its high etch selectivity and low reactivity with silicon.
Environmental Impact: NF3 is a potent greenhouse gas with a high global warming potential (GWP). It has a GWP of approximately 17,200 times that of carbon dioxide (CO2) over a 100-year period. Although its atmospheric concentration is relatively low compared to other greenhouse gases, its long atmospheric lifetime contributes to its significant impact on global warming.
Safety Considerations: Nitrogen trifluoride can be hazardous when mishandled or released in large quantities. It is an oxidizer and can react violently with reducing agents or combustible materials. NF3 gas is also an irritant to the respiratory system and can cause eye and skin irritation. Proper safety precautions, including adequate ventilation and personal protective equipment, should be observed when working with NF3.
Basic Info.
| Molecular Weight | 147.05 | Density | 2.96Kg/m³ |
| Melting Point | -206.79ºC | Boiling Point | -129.0ºC |
| Appearance | Colorless,Odorless | Un No. | 2451 |
| DOT Class | 2.2&5.1 | Valve | Diss640 |
| Cylinder Standard | GB/ISO/DOT | Cylinder Pressure | 15Mpa/20Mpa |
| Transport Package | 47L/440L | Specification | 99.99%,99.996% |
| Trademark | CMC | Origin | China |
| HS Code | 28129011 | Production Capacity | 5000tons/Year |
Specification:
| Specifications | Company Standard |
| NF3 | ≥ 99.996% |
| CF4 | ≤ 20 ppm |
| N2 | ≤ 5 ppm |
| O2+AR | ≤ 3 ppm |
| CO | ≤ 1 ppm |
| CO2 | ≤ 0.5 ppm |
| N2O | ≤ 1 ppm |
| SF6 | ≤ 2 ppm |
| Moisture | ≤ 1 ppm |
| Express as HF | ≤ 1 ppm |

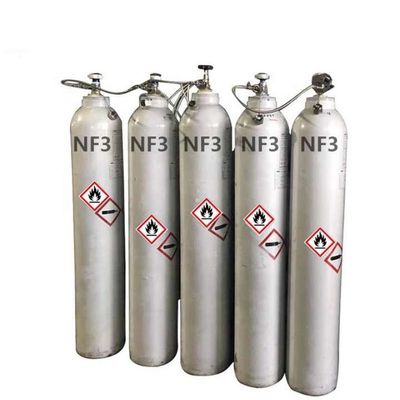

Detailed Photo
|
|
