| MOQ: | 1kg |
| Price: | US $ 9.5/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 Tons/Year |
Here are some key properties and applications of sulfur hexafluoride gas:
Insulating Properties: SF6 has a high dielectric strength, which means it can effectively prevent electrical discharges and breakdowns in high-voltage equipment. This property makes it suitable for use in electric power transmission and distribution systems.
Thermal Stability: SF6 is thermally stable and can withstand high temperatures without decomposing. This characteristic makes it useful in applications where equipment may experience elevated operating temperatures.
Inertness: SF6 is chemically inert and does not react with most substances. It remains stable under normal conditions, making it a reliable and long-lasting insulating material.
Density: SF6 is a dense gas with a higher density than air. This property allows it to be used in gas-insulated switchgear (GIS), where the gas is used to fill enclosed compartments, providing insulation and reducing the overall size of the equipment.
Medical Applications: SF6 has been used in medical imaging techniques, such as ultrasound contrast imaging and retinal detachment surgery. Its high density and low solubility in blood make it suitable for certain diagnostic and therapeutic procedures.
It's worth noting that while SF6 has many beneficial properties for electrical insulation, it is also considered a potent greenhouse gas with a high global warming potential. Efforts are being made to reduce its usage and find alternative insulating gases with lower environmental impact.
Basic Info
| DOT Class | 2.2 | Un Number | Un 1080 |
| Cylinder Standard | DOT/ISO/GB | Cylinder Pressure | 15MPa/20MPa |
| Valve | Qf-2, Cga590 | Melting Point | -50.8 ºC |
| Appearance | Colorless, Odorless | Boiling Point | -63.8 ºC |
| Density | 6.0886 Kg/M³ | Molecular Weight | 146.05 |
| Transport Package | 40L, 47L, 50L, 500L | Specification | 99.995%, 99.999% |
| Trademark | CMC | Origin | China |
| HS Code | 28129019 | Production Capacity | 5000tons/Year |
Specifications
| Specifications | Company Standard |
| SF6 | ≥ 99.995% |
| Air | ≤ 10 ppm |
| CF4 | ≤ 2 ppm |
| C2F6 | ≤ 20 ppm |
| C3F8 | ≤ 5 ppm |
| Low Sulfide | Not Detected |
| H2O | ≤ 1 ppm |
| Acidity as HF | ≤ 0.1 ppm |
| Hydrolysable Fluor ides as HF | ≤ 0.3 ppm |
| Mineral Oil | ≤ 1 ppm |

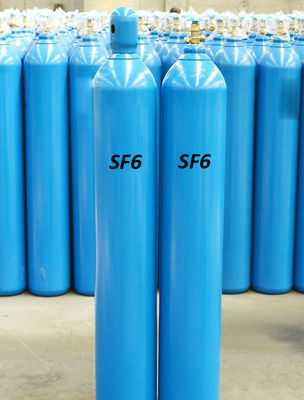

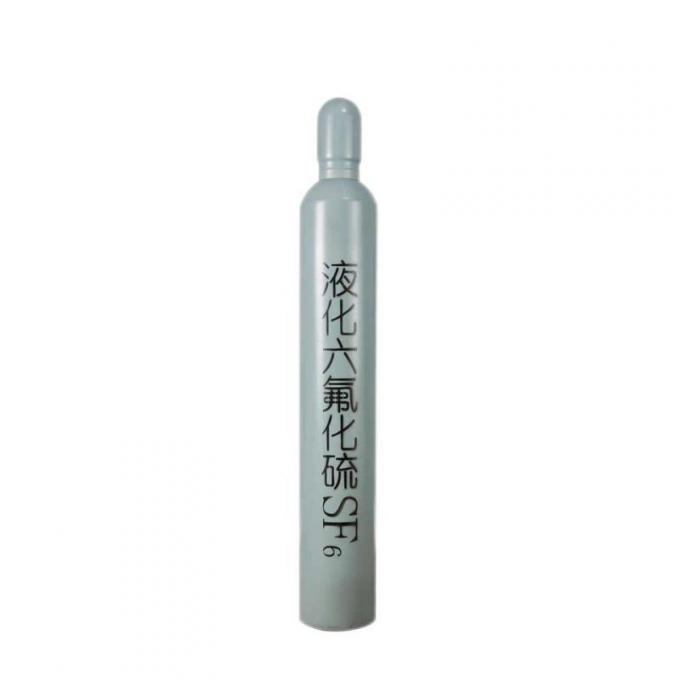

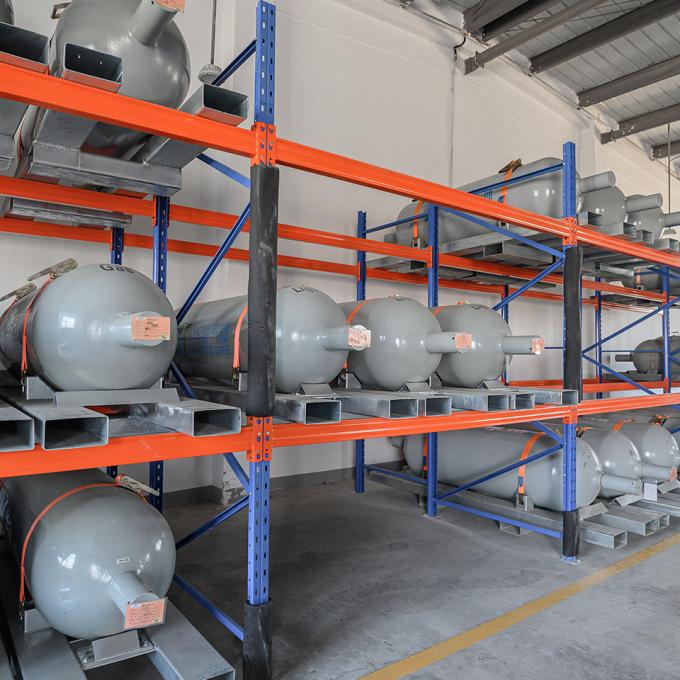

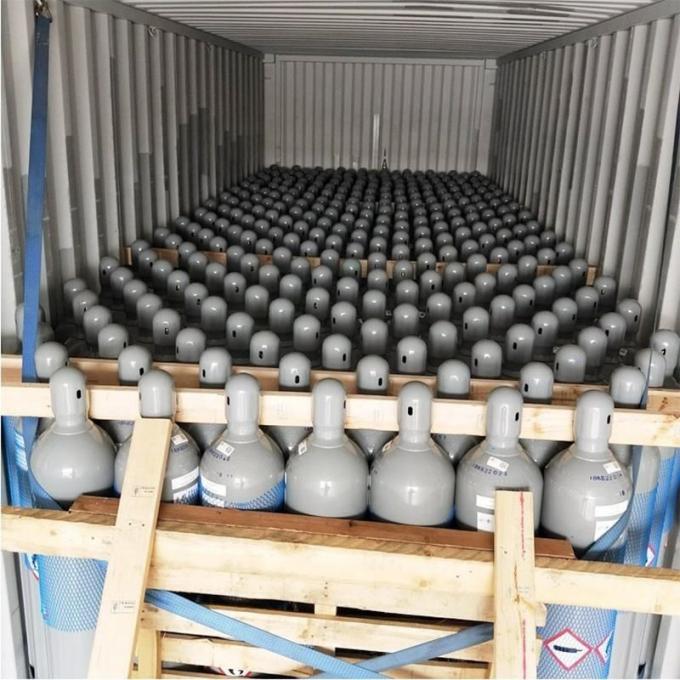

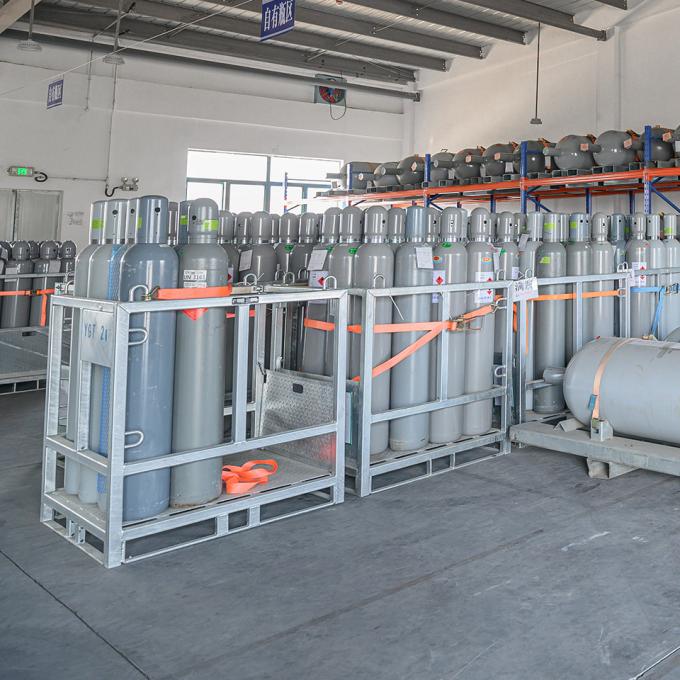

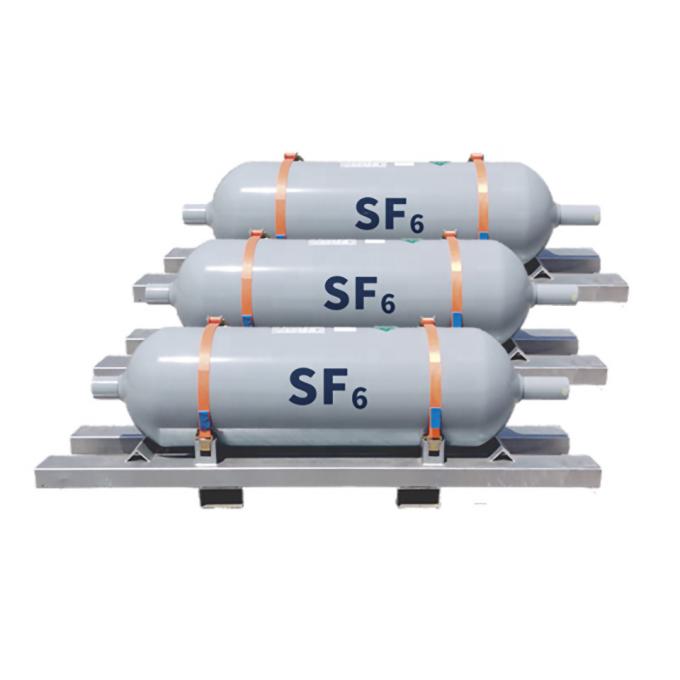

Detailed Photos
|
|
