| MOQ: | 1kg |
| Price: | US $ 45/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50000kg/month |
Silane (SiH4) is a chemical compound that consists of one silicon atom bonded to four hydrogen atoms. Here are some key points about silane:
Structure: Silane has a tetrahedral molecular structure, with the silicon atom at the center and the four hydrogen atoms arranged around it. Its chemical formula is SiH4.
Properties: Silane is a colorless, flammable gas with a pungent odor. It is less dense than air and can form explosive mixtures when exposed to air. Silane is highly reactive and can spontaneously ignite in the presence of oxygen.
Production: Silane can be produced through several methods, including the reaction of metallurgical-grade silicon with hydrogen gas, the hydrolysis of silicon tetrachloride (SiCl4), or the reduction of silicon dioxide (SiO2) with hydrogen.
Applications: Silane has various applications across different industries:
Semiconductor Industry: Silane is used as a precursor gas in the deposition of thin films of silicon for semiconductor devices. It is a key component in the chemical vapor deposition (CVD) and plasma-enhanced chemical vapor deposition (PECVD) processes.
Solar Energy: Silane is used in the production of silicon-based solar cells. It serves as a precursor gas for depositing silicon layers and dopants onto solar cell substrates.
Surface Modification: Silane is used as a surface treatment agent to enhance adhesion between materials. It is commonly employed in coatings, adhesives, and sealants to improve bonding with substrates such as glass, metals, and plastics.
Chemical Synthesis: Silane derivatives are utilized as reducing agents, intermediates, or catalysts in various chemical reactions. They can be involved in the synthesis of organosilicon compounds, silicones, and other silicon-containing products.
It's important to note that silane is a hazardous substance and requires careful handling due to its flammability and reactivity. Precautions should be taken to ensure safe storage, transportation, and usage of silane.
Basic Info.
| Model NO. | Sih4 | Boiling Point | -112 ºC |
| Density | 1.34 Kg/M³ | Melting Point | -185 ºC |
| Cylinder Pressure | 12.5MPa/15MPa/20MPa | Transport Package | 47L/440L/ISO Tank |
| Specification | 47L/440L/ISO Tank | Origin | China |
| HS Code | 2931900090 | Production Capacity | 20, 000tons/Year |
Specification:
CAS No.: 7803-62-5
EINECS No.: 232-263-4
UN No.: UN2203
Purity: 99.9999%
Dot Class: 2.1
Appearance: Colorless
Grade Standard: Electronic Grade
| Specification | 99.9999% |
| Carbon Monoxide | ≤ 0.05 ppm |
| Carbon Dioxide | ≤ 0.05 ppm |
| Total chloride | ≤ 0.1 ppm |
| Methane | ≤ 0.05 ppm |
| C2-C4 | ≤ 0.1 ppm |
| Nitrogen | ≤ 0.5 ppm |
| Oxygen | ≤ 0.05 ppm |
| Moisture | ≤ 0.1 ppm |
| Silyl Ether | ≤ 0.1 ppm |
| Methyl Silane | ≤ 0.1 ppm |
| Disilane | ≤ 0.3 ppm |
| Hydrogen | ≤ 20 ppm |
| Aluminum | ≤ 0.02 ppba |
| Antimony | ≤ 0.02 ppba |
| Arsenic | ≤ 0.02 ppba |
| Gallium | ≤ 0.02 ppba |
| Boron | ≤ 0.02 ppba |
| Phosphorus | ≤ 0.02 ppba |
| Iron + Chromium + Nickel + Copper + Zinc | ≤ 1 ppba |

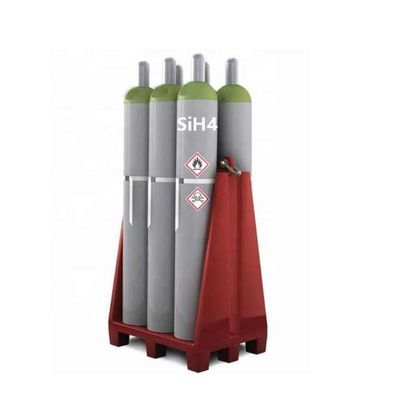

Detailed Photo
Packaging & Shipping
| Cylinder Specifications | Contents | |
| Cylinder Capacity | Valve | Weight |
| 47L | DISS632 | 10 kgs |
| 440L | DISS632 | 120 kg |
|
|
