| MOQ: | 1kg |
| Price: | US $45/kg |
| Standard Packaging: | Cylinder/Tank |
| Delivery Period: | 15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000kg/month |
Silane and nitrogen (N2) mixed gas refers to a combination of the silane gas (SiH4) and nitrogen gas. This mixture can be created by blending the two gases in specific ratios. Here are a few points regarding silane nitrogen mixed gas:
Purpose: The use of silane nitrogen mixed gas can serve various purposes depending on the specific application. The addition of nitrogen to silane gas can alter its properties and allow for controlled processes.
Dilution: Nitrogen is often added to silane gas to dilute its concentration. Diluting silane with nitrogen can be done to reduce its reactivity and lower the risk of unwanted reactions or hazards.
Safety: Silane is a flammable and highly reactive gas, and mixing it with nitrogen can provide a safer working environment. The addition of inert nitrogen gas can help to stabilize the mixture and reduce the risk of combustion or explosions.
Applications: Silane nitrogen mixed gas finds applications in various industries, including:
Semiconductor Industry: Silane nitrogen mixtures can be used in chemical vapor deposition (CVD) processes for the deposition of silicon-based films in semiconductor manufacturing. The addition of nitrogen can modify the film properties, such as refractive index or stress.
Solar Cell Production: Silane nitrogen mixtures can be employed in the manufacturing of silicon-based solar cells. It is used as a precursor gas for the deposition of thin films on solar cell substrates.
Coating and Surface Modification: Silane nitrogen mixtures can be utilized as precursor gases in surface treatment processes, such as plasma-enhanced chemical vapor deposition (PECVD) or atomic layer deposition (ALD). These processes can be employed for coating or modifying the surface properties of various materials.
It is important to note that the specific composition and application of silane nitrogen mixed gas may vary depending on the desired outcome and safety considerations. Proper handling, storage, and usage precautions should be followed when working with any gas mixture.
Specification:
| COMPOSITION / INFORMATION ON INGREDIENTS | |||
| CAS | Component Name | Purity | Percent |
| 7727-37-9 | Nitrogen | 99.9999% | 80% |
| 7803-62-5 | Silane | 99.9999% | 20% |
| UN No. | 1954 |
| DOT Class | 2.1 |
| Label | Flammable Gas |
| Cylinder Specifications | Contents | Pressure | ||
| Cylinder Capacity | Valve | Volume | bar | psig |
| 40L | CGA350 | 3200L | 80 | 1160 |

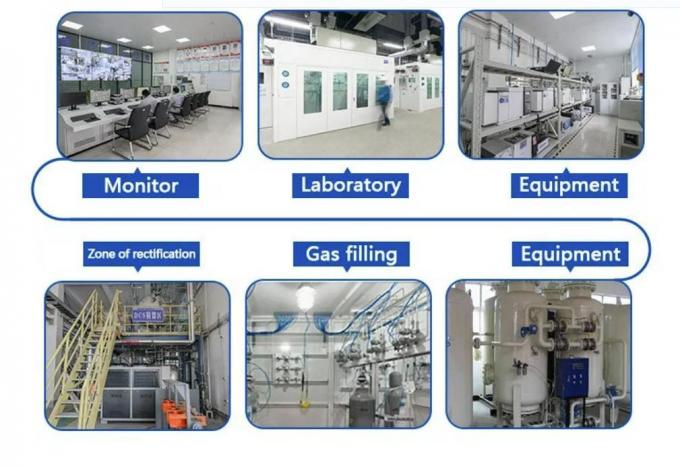

ShangHai CMC chemical Co.,ltd. is staffed by trained personnel, combine many years experience in Gas industry .We supply cylinder gas, electronic gas, etc ., and the gas holder, panel, valves and fittings and other equipment, parts and engineering services to our customers in China and worldwide; The products are involved in various industrial fields, such as semiconductor chip, solar cell, LED, TFT-LCD, optical fiber, glass, laser, medicine , etc., Our mission is to partner with our global customers to provide support, solutions and quality products that are innovative,reliable, and safe.
Our products mainly include: H2, O2, N2, Ar, CO2, propane, acetylene, helium, laser mixed gas, SiH4, Sih2cl2, SiHCL3, SiCL4, NH3, CF4, NF3, SF6, HCL, N2O, doping mixed gas (TMB, PH3, B2H6) and other electronic gases.
|
|
